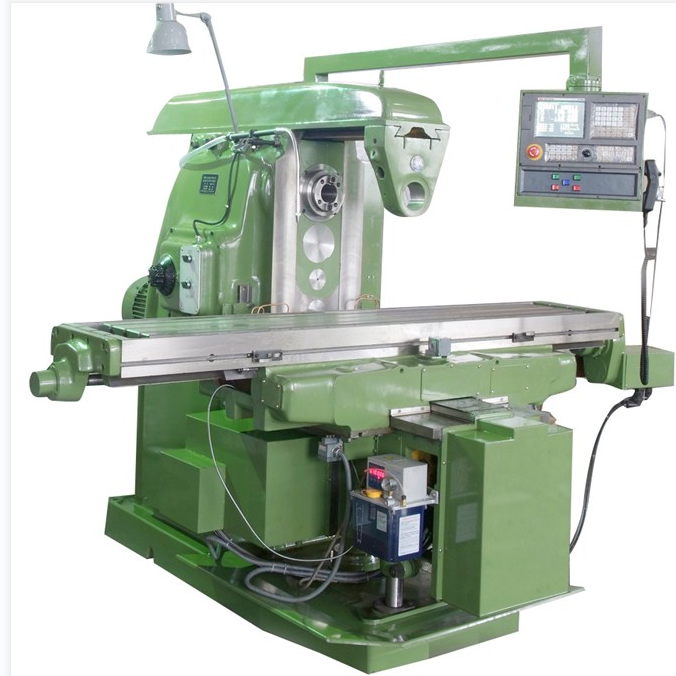

XK6140A 數控升降臺銑床

2023/03/29 分類:產品中心升降臺數控銑床數控銑床 999

項目名稱	XK5032A	XK5040	XK6132A	XK6140A
工作臺面積（寬X長）??????????????mm	320×1320	400*1700	320*1320	400*1700
*工作臺T形槽（槽數-寬度X間距）???mm	3-18×70	3-18×90	3-18*70	3-18×90
工作臺承載最大重量????????????????kg	500	800	500
行程（X/Y/Z）?????????????????????mm	700/300/360	700/300/360	700/300/360	700/300/360
*主軸套筒手動移動距離??????????????mm	70	80
主軸端面到工作臺面距離????????????mm	80-400	30-500	80-400	30-500
工作臺中心線到立導軌面距離????????mm	220-470	255/570	220-470	255/570
立銑頭最大回轉角度????????????????°	±45	±45
主軸錐孔	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
*主軸刀柄形式	NT50	NT50	NT50	NT50
主軸轉速?????????????????????????r/min	18級30-1500	18級30-1500	18級30-1500	18級30-1500
主軸電機功率??????????????????????kW	7.5	11	7.5	11
進給伺服電機功率?（X、Y、Z）????N.m	10/10/18	10/10/23	10/10/18	10/10/23
進給速度（X、Y、Z）?????????????mm/min	5-1000	5-1000	5-1000	5-1000
快速移動速度（X、Y/Z）???????????mm/min	3000/1200	3000/1200	3000/1200	3000/1200
*定位精度（ISO）???????????????????mm	0.030	0.030	0.030	0.030
*重復定位精度（ISO）???????????????mm	0.025	0.025	0.025	0.025
機床外形尺寸（長×寬×高）????????mm	2600×1825×2250	255621592298	2600×1625×2250	255621591830
機床凈重（約）????????????????????kg	2700	4000	2600	3800
標準配置：國產系統、國產電機、國產滾珠絲桿
